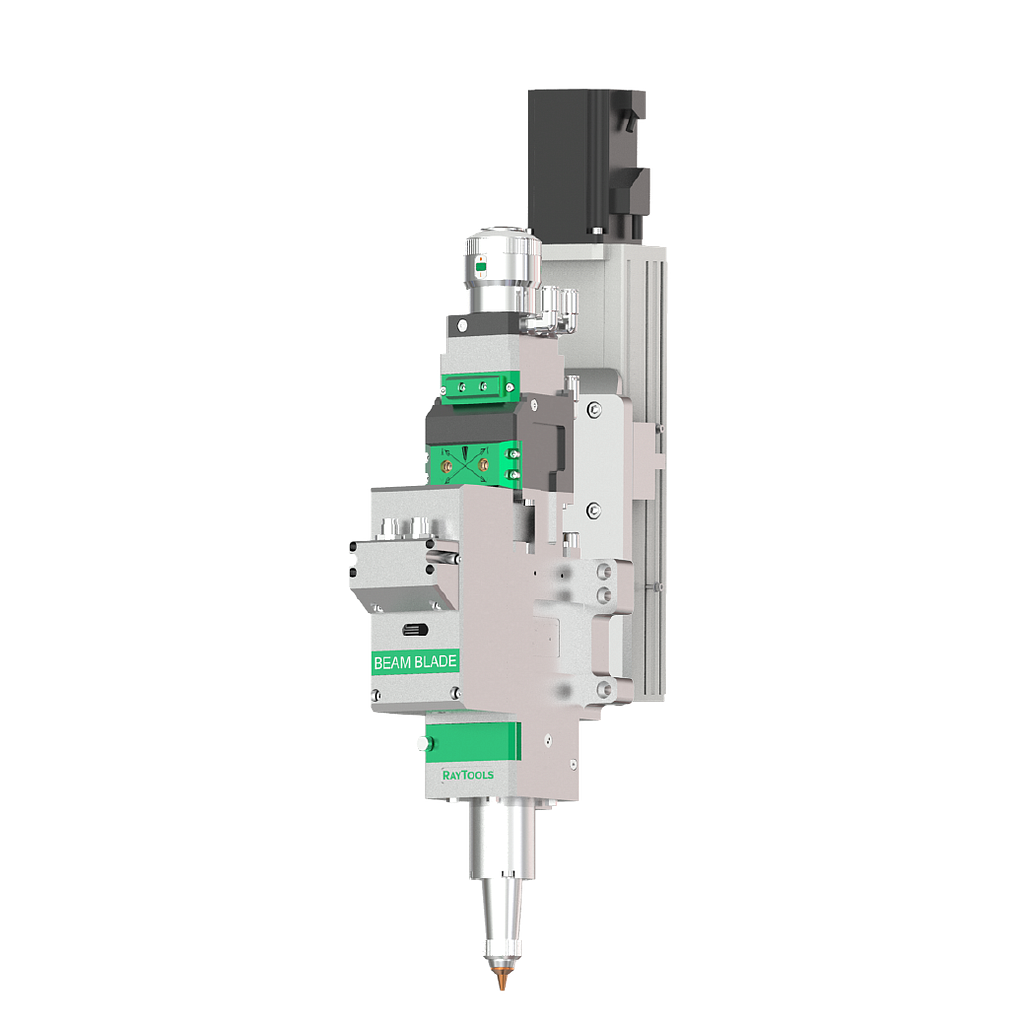

BD04K Auto Focus Tube Cutting Head
BD04K Auto Focus Tube Cutting Head
BD04K Auto Focus Tube Cutting Head
BD04K Auto Focus Tube Cutting Head
BD04K Auto Focus Tube Cutting Head
BD04K Auto Focus Tube Cutting Head
BD04K Auto Focus Tube Cutting Head
-
- Lightweight design with fast acceleration, Optimized optical configuration and efficient air flow design significantly to improve cutting quality and efficiency.
- With QBH, G5 and other types of optical fiber interfaces, it is applicable to various fiber lasers.
- Good sealing to keep beam path clean.
- Automatically change the focus position.
BD04K Auto Focus Tube Cutting Head
Technical Data
| Item | Specification |
| Collimation Length | 100 mm |
| Focusing Length | 200 mm |
| Cover Glasses – Top – Middle – Bottom |
Φ24.9 × 1.5 mm Φ27.9 × 4.1 mm Φ27.9 × 4.1 mm |
| Auto Focus Control | Pulse + Direction 0~10V Analog EtherCAT |
| Beam Alignment | Collimator X/Y |
| Beam Alignment Range | ±1 mm |
| Focus Adjustment | Focus Lens Moving |
| Auto Focus Range | -12 ~ +12 mm |
| Fiber Interface | QBH, QD, G5 |
| Weight | ~4.8 Kg |
| Nozzle Style | Single / Double |
| Diameter of Nozzle Tip | 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm |
| Height Follow System | Optional -Standalone -0~10V Analog -EtherCAT |
-
