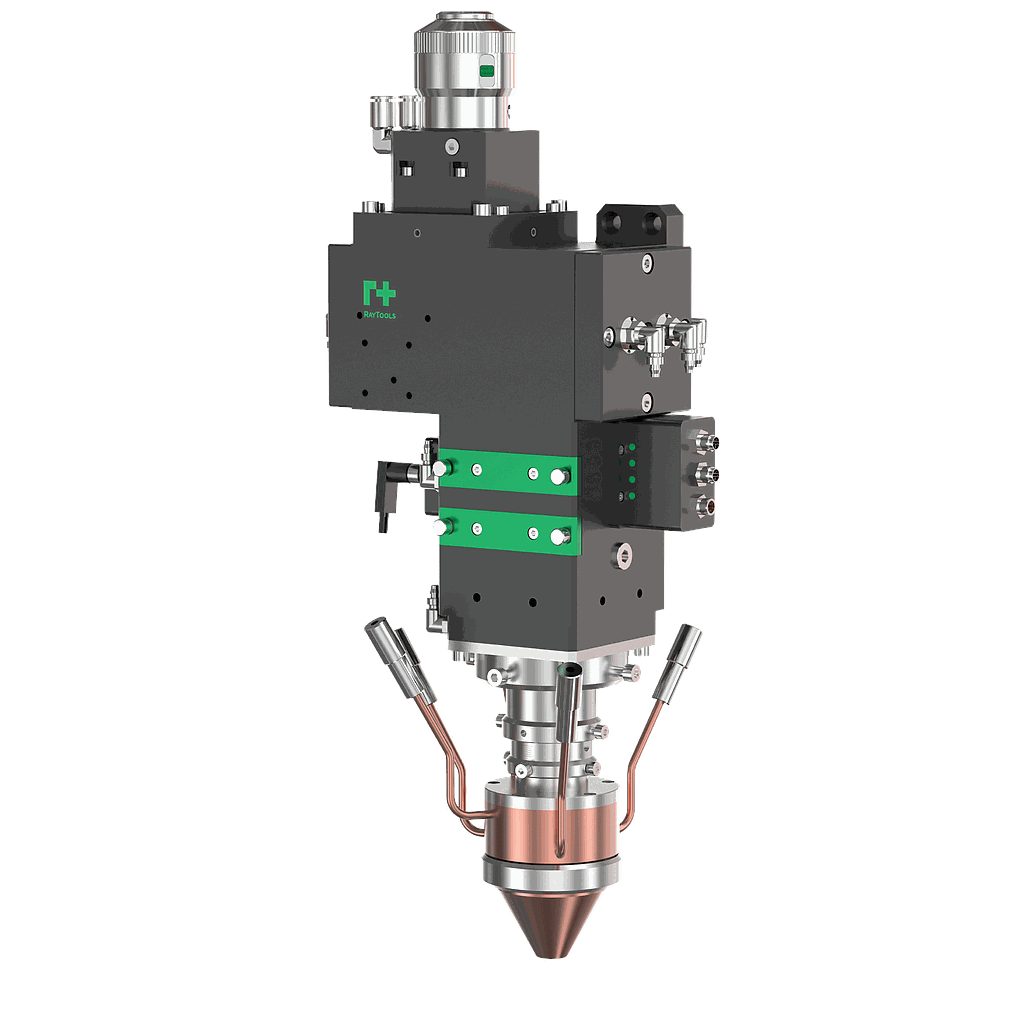

Cladding & HardeningBF04K/BF06K Wobble Laser Welding Head
+ Free Shipping
- Built-in galvo and drive system.
- Both internal control and external control mode.
- Various wobbling paths like continuous circle,continuous square, continuous line, continuous ellipse and continiuous 8 type, etc.
- Strengthened melting pool could be acquired comparing to standard welding.
- To increase melting width, gas adaptability and reduce seam defects.
- Coaxial nozzle assembly or air knife+side blow assembly optional.
- Smooth and efficient fluid structure to obtain the best protection to melting pool.
- Integrated with a CCD camera for real-time monitoring and observation of the machining process.
- Optional features of real-time temperature monitoring to optics system.
Technical Data
| Item / Model |
AL06K/AL12K/AL20K/AL30K |
| Power Rate |
6kW/12kW/20kW/30kW |
| Fiber Interface |
QBH/QD/LLK-D |
| CCD Interace |
/ |
| Collimator Focal Length (mm) |
F100/F125/F150 |
| Focusing Focal Length (mm) |
F300/F350/F400 |
| Top Cover Glass (mm) |
D37×1.6 |
| Bottom Cover Glass (mm) |
D50×2 |
| Seal Ring (mm) |
55.2×4×3.4 |
| Clear Aperture (mm) |
45 |
| Laser Wavelength (nm) |
1064 |
| Weight (kg) |
6.5 |
| Optional Components |
Air Knife
3-way Powder Feeding Nozzle
4-way Powder Feeding Nozzle
Annular Powder Feeding Nozzle |
