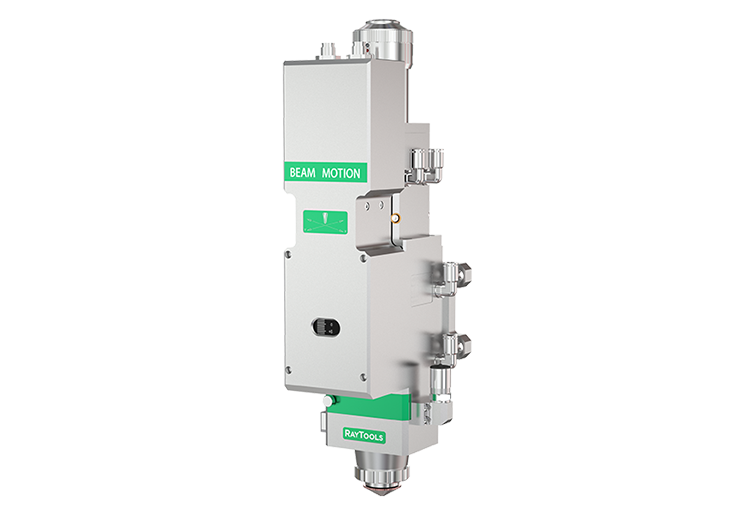

BM111 Auto Focus Laser Cutting Head
BM111 Auto Focus Laser Cutting Head
BM111 Auto Focus Laser Cutting Head
BM111 Auto Focus Laser Cutting Head
BM111 Auto Focus Laser Cutting Head
BM111 Auto Focus Laser Cutting Head
BM111 Auto Focus Laser Cutting Head
Features –
- Modular design with easy maintenance.
- Colimation – 100 Focus- 125/150/200
- Compatible with All laser Controller
- Dual water cooling circuits.
- Auto focus by Yasakawa Driver to reduce human intervention and improve piercing and cutting efficiency.
- 3 Cover glasses (top, middle and bottom) to protect collimation & focus lens.
- IP65 class dustproof, patented cover glass cover plate. All-around dust prevention.
BM111 Auto Focus Laser Cutting Head
Technical Data
| Fiber Interface | QBH, QD |
| Clear Aperture | 28mm |
| Auto Focus
– Range – Acceleration – Velocity – Accuracy |
QBH
+10 – -12mm < 10 m/s < 10m/min <50pm |
| Cover Glasses
– Collimation side (Top) – Focusing Side (Middle/Bottom) |
24.9 * 1.5mm 27.9 * 4.1mm |
| Collimation Length | 75mm, 100mm |
| Focusing Length | 125mm, 155mm, 200mm |
| Nozzle Styles | Single, Double, Custom |
| Diameter of Nozzle Tip | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm |
| Assist Gas Pressure | < 30 Bar |
| Weight | ~5.7kg |
-
