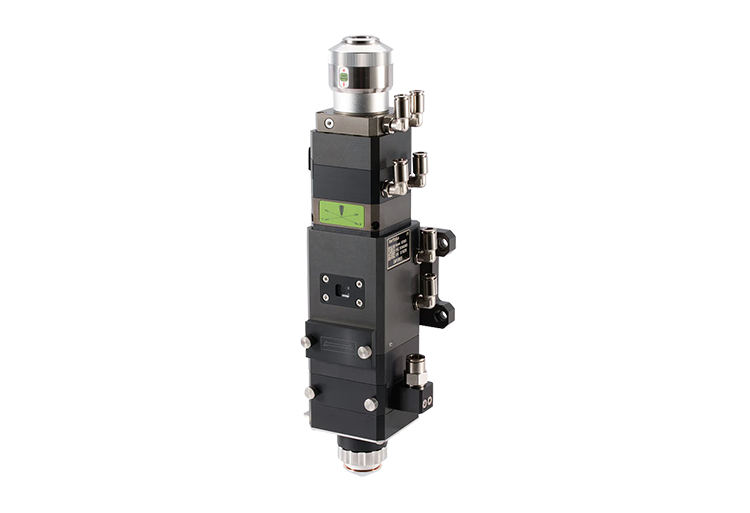

The BT240s is a medium- to low-power cutting head with a power rating of 3.3 kW. Equipped with the QBH fiber interface, it is compatible with various mainstream laser sources. Its optimized optical configuration and smooth, efficient airflow design significantly enhance cutting quality and efficiency.
| Model | BT240S |
| Power Rating | ≤3.3kW |
| Fiber Interface | QBH |
| Fiber Wavelength | 1064nm |
| NA | 0.13 |
| Collimation Length | F100 |
| Focusing Length | F125 / F150 |
| Calibration | Auto Calibrating / Manual Calibrating |
| Assist Gas Pressure | ≤25bar |
| Distance Range | 0.3-10mm (1mm Recommended) |
| Weight | ~3.5kg |
