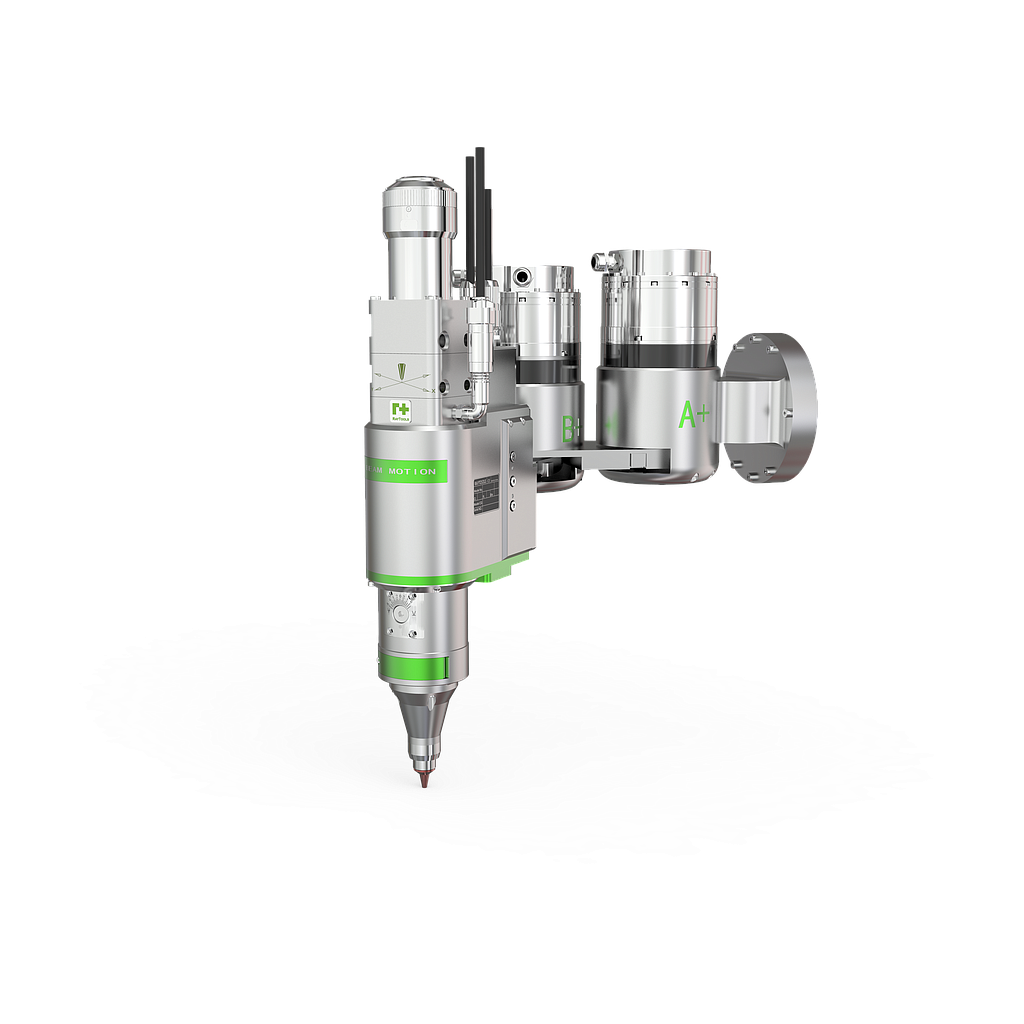

GF101+GF102 Robotic Laser Cutting Head
GF101+GF102 Robotic Laser Cutting Head
GF101+GF102 Robotic Laser Cutting Head
GF101+GF102 Robotic Laser Cutting Head
GF101+GF102 Robotic Laser Cutting Head
GF101+GF102 Robotic Laser Cutting Head
GF101+GF102 Robotic Laser Cutting Head
-
- Compact design with light-duty to decrease the payload of robot or machine tool.
- Excellent dynamic characteristics and high precision.
- Programmable A/B axis which is capable of cutting to small contours.
- Independent application or along with robot arm.
- Built-in Z axis design to narrow down operation space and decrease interference.
- Drawer type cover glass holder to facilitate replacement.
- Standard QBH/QD (LLK-D) interfaces to work with different fiber lasers.
GF101+GF102 Robotic Laser Cutting Head
Technical Data
| Fiber interface | QBH, QD(LLK-D) |
| Clear Aperture | 28 mm |
| Manual Focus:
– Range -Accuracy |
+7-9 mm < 50 µm |
| Cover Glasses
-Collimation Side (Top) –Focusing Side (Bottom) |
24.9 1.5 mm Ф27.9 4.1 mm. |
| Collimation Length | 100mm |
| Focus Length | 150mm |
| Min. Cutting Diameter | 1mm (accuracy ±0.1mm) |
| Nozzle Styles | Single, Double, Custom |
| Diameter of Nozzle Tip | |
| Assist Gas Pressure | 0.8mm, 1.0mm, 1.2mm, 1.5mm. 2.0mm, 2.5mm, 3,0mm, 3.5mm, 4.0mm |
| Weight | -11 kg |
| Recommended Robot Payload | -35-40 kg |
-
