Water chiller units CWFL-1500 with environmental refrigerant for fiber lasers

Name: Water chiller units CWFL-1500 with environmental refrigerant for fiber lasers
Brand: RayTools and Luna Technologies
Availability: InStock

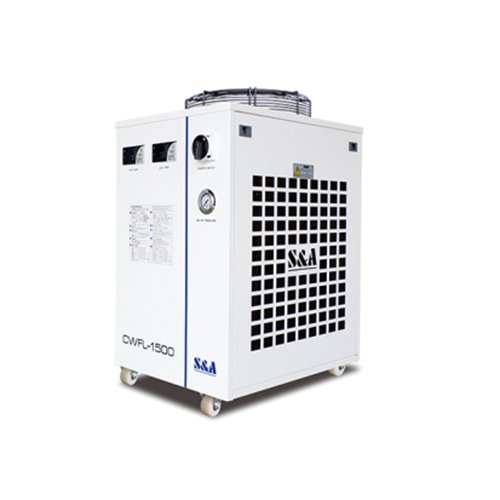

CWFL-1500 water chiller developed by S&A Teyu is made especially for fiber laser applications up to 1.5KW. This industrial water chiller is a temperature control device featuring two independent refrigeration circuits in one package. Therefore, separate cooling from just ONE chiller can be provided for the fiber laser and the laser head, saving considerable space and cost at the same time.

Water chiller units CWFL-1500 with environmental refrigerant for fiber lasers

Features

1. Dual channel design for cooling fiber laser and the laser head, no need of a two-chiller solution;
2. ±0.5℃ precise temperature control;
3. Temperature control range: 5-35 ℃;
4. Constant temperature and intelligent temperature control modes;
5. Built-in alarm functions to avoid water flow problem or temperature problem;
6. CE, RoHS, ISO and REACH compliant;
7. User-friendly temperature controllers for easy operation
8. Optional heater and water filter.

Specification

CWFL-1500	CWFL-1500AN	CWFL-1500BN
Voltage	AC 3P 380V	AC 3P 380V
Frequency	50 Hz	60 Hz
Current	3.4 ~ 16 A	3.4 ~ 25.3 A
Machine Power	2.78 kW	2.76 kW
Electric Assisted Power	600W + 600W
Precision	±0.5°C
Reducer	Capillary
Pump Power	0.75 kW
Tank Capacity	15 L
Inlet and Outlet	Rp1/2″ + Rp1/2″
Lift	53 M
Rated Flow	3 L/min + 15 L/min
N.W.	78 Kgs
G.W.	88 Kgs
Dimension	179 × 47 × 89 cm (L × W × H)
Package Dimension	190× 110 × 209 cm (L × W × H)
