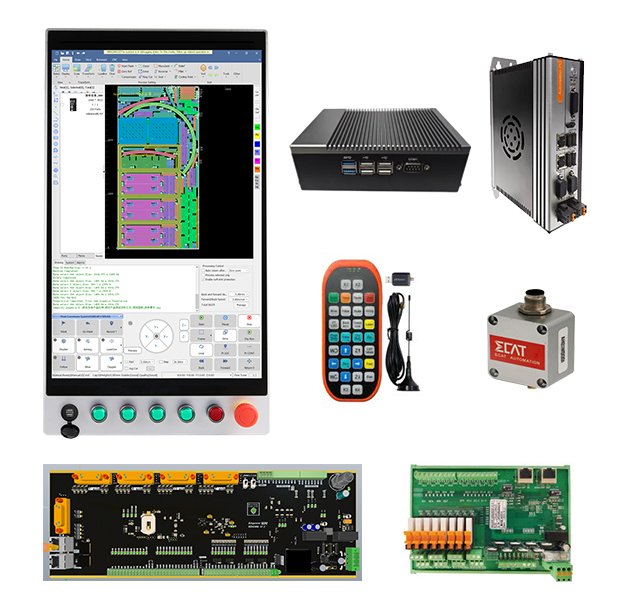

XC3000Plus EtherCAT Motion Control System of Laser Cutting

+ Free Shipping

2nd generation algorithm of motion control to improve the process efficiency.
Process database can be expanded as clients require.
Fly cut, down jump, compensate, lead, micro-joint, pre-pierce, multilevel pierce and film cut etc…
Auto FindEdge, manual FindEdge, auto sort and break point cut, etc…
Cooling point and triangle cut.
Auto sort: auto transferred to system recognized format, auto sorted and generate to NC or PART files.
Compatible to various lasers.
Compatible to processing by manual G code modification
Communication: EtherCAT protocol control with real-time refresh cycle 1ms.
Accuracy: path 0.005mm, positioning 0.001mm, repeated positioning 0.002mm.
Speed: max. acceleration 3G, max. dry motion 250m/min.
Safety: overload protection to axis moment, real-time monitoring to axis moment to stop and upload servo alarm.
FindEdge: Auto FindEdge and manual FindEdge (Auto FindEdge can turn angle automatically by detecting slight angle deviation of metal material).
Alarm: alarm log export to give reference to operator.
Friendly maintenance: auto calibration and break point mode.
Commissioning: close-loop arc detection feature to save commissioning time. Torque monitoring feature to detect the status of mechanical meshing if it is too tight or loose.

Category: Controllers

Guaranteed Safe Checkout

HMI PC (Master)	EPC-1020/IPC-E4000 (Windows, Optional)
Engine PC (Slave)	EPC-2000 (Linux)
I/O Module	EDS3000
Extended I/O Module	EDS2010/EDS2011 (Optional)
Digital Input (24V/0V)	24
Digital Output (24V)	16
Relay Output	N/A
Transistor Output (24V)	16 (Optional-EDS2010)
Analog Input	4
Analog Output	4
PWM (24V/5V)	2
General Axis Interface (Pul/Dir)	4 (X/Y/Y1/Z)
F axis Interface (Auto Focus)	1
Height Sensor Interface	1
Communication	EtherCAT
Software	2D Cut software + nesting
