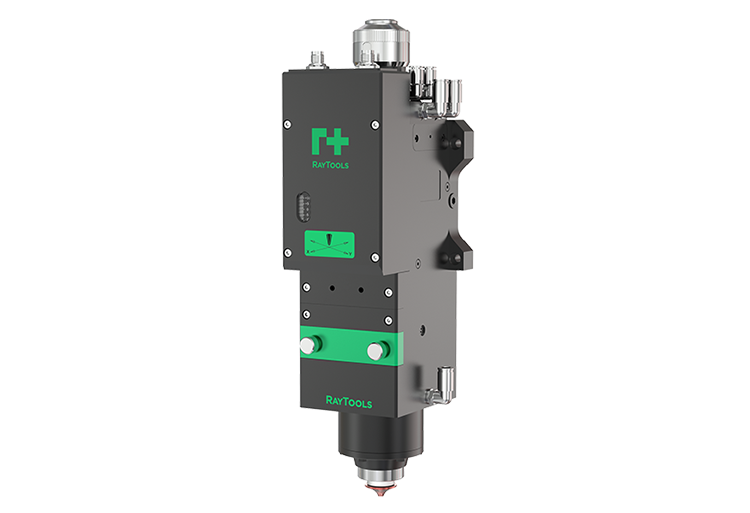

The BS06K is a 6 kW medium- to high-power intelligent cutting head supporting analog/pulse or EtherCAT bus-controlled focus adjustment. Compatible with various mainstream laser sources via QBH and G5 interfaces, it features built-in sensors for real-time monitoring on mobile devices and CNC systems over a wireless network.
BS06K Smart Laser Cutting Head
Technical Data
| Model | BS06K |
| Power Rating | ≤6kW |
| Fiber Interface | QBH / G5 |
| Fiber Wavelength | 1080nm |
| NA | 0.13 |
| Collimation Length | F100 |
| Focusing Length | F150 / F200 |
| Auto Focus Range | -17···+17mm / -32···+32mm |
| Cutting Gas | Φ10, max. 25bar |
| Cooling Gas | Φ8, max. 5bar |
| Weight | ~5kg |
-
