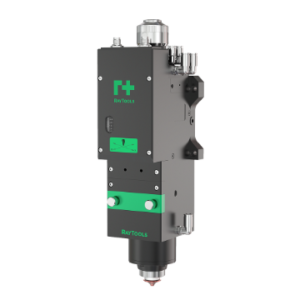

Cutting HeadBW03K Formerly as BW210 SERIES
+ Free Shipping
Features –
- Different versions applicable to fiber laser, direct diode laser and blue laser for option.
- Light-duty and compact design.
- Both collimation and focus lens are water cooled.
- Efficient fluid structure design to obtain the best protection to melting pool.
- Coaxial nozzle or air knife+side blow nozzle is optional.
- Optional feature of CCD camera for real-time monitoring and observation of the machining process.
- Optional feature of real-time temperature monitoring to optics system.
Technical Data
| Dio/Blue Version
– Fiber Interface
– Focal Length of Collimation/Focusing Lens |
QBH/ SMA905, QCS
50mm:100/125/150mm |
| CCD |
Type – C, Type – CS |
| Clear Aperture |
28 mm |
| Cover Glass (Bottom) |
27.9 * 4.1 mm |
| Assist Gas Pressure
– Air Knife
– Air Protection |
< 6 Bar
25 L/min |
| Weight |
~ 3 kg (with CCD) |
| Optional Tip Components |
Side Blow / Coaxial Nozzle |
