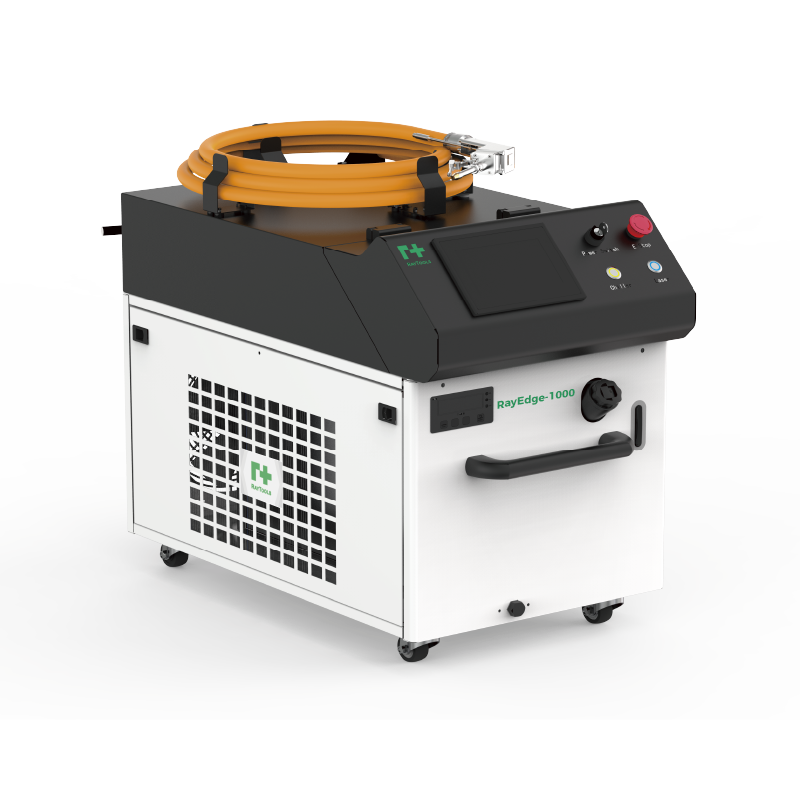

RayEdge-1000 4-in-1 Handheld Laser Welding Machine

+ Free Shipping

Compact integrated design with easy operation.
Wobble welding to improve welding capacity to seam.
Wire feeder included to expand application range.
Multiple safety protection with auto beam off function once the nozzle goes away from workpiece.
“4-in-1 function” (Weld/Cut/WeldSeam Clean/Remote Clean). Quick-change structure of tip assembly from laser processing head.

Category: Welding

Guaranteed Safe Checkout

Description
Reviews (0)

Technical Data

Item	RayEdge-1000	RayEdge-1500	RayEdge-2000	RayEdge-3000
Laser	Maxphotonics / Raycus
Laser Power	1000w	1500w	2000w	3000w
Laser Wavelength	1080nm
Fiber Length	10m
Fiber Core	25µm / 50µm	50µm	50µm	50µm
Welding Speed	0–20mm/s
Welding Style	Wobble (single axis)
Wobbling Range	0–5mm (Weld) / 0–10mm (Weld Seam Clean) / 0–80mm (Remote Clean)
Welding Seam Width	Max. 5mm
Welding Thickness (SS, MS and 5 series AL)	Max. 2mm based on 1000W laser	Max. 3mm based on 1500W laser	Max. 4mm based on 2000W laser	Max. 6mm based on 3000W laser
Cooling	Water Cooling
Cover Glass	Φ20mm × 3mm
Collimation Length	60mm
